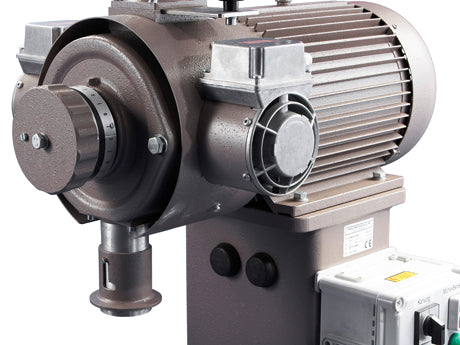

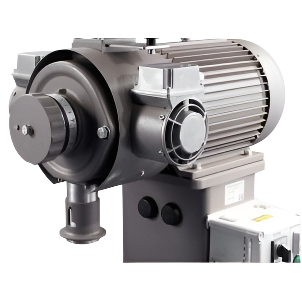

Mahlkonig DK 27 LVS/LVH Industrial Coffee Grinder
The DK27 levels up the capacities of your premium pre-ground coffee production to 230 kg to 300 kg per hour and is suitable for continuous operation, as for example in automated production lines.
Have Questions?
Email: sales@artizancoffee.com
Chat: Live Agents Available M-F 9: AM to 6:00 PM EST
More Information About MAHLKÖNIG DK27
Overview
The Mahlkönig DK 27 is a robust, high-performance industrial grinder engineered for continuous, high-volume coffee grinding. It pairs professional-grade build quality with flexible burr options, producing consistent grinds for diverse applications—from Turkish coffee to fine espresso. Ideal for large-scale or automated operations, its size, power requirements, and price limit it to serious coffee production use cases.
If you're considering integration, confirm power compatibility, shipping logistics, and expected lead times (some units may still be available but are being phased out). Let me know if you'd like a direct vendor comparison or details on maintenance, spare parts, or newer alternatives!
Details
- Outstanding even grinding quality
- Wear-resistant premium burrs
- Very powerful three-phase motors with surface cooling and high starting torque - suitable for continuous operation
- Service-free, constantly greased bearings
- Two additional fans to cool the motor
- Ground material container (capacity 200 l)
Specifications
Voltage // frequencies // phases:
- 380-415 V // 50/60 Hz // 3~
- 208-220 V // 50/60 Hz // 3~
Idle speed: 980 rpm (50 Hz); 1160 rpm (60 Hz)
Burr diameter: 180 mm
Burr material:
- Fully hardened special steel (DK27 LVS, DK27 LVST)
- Fully hardened special cast steel (DK27 LV, DK27 LVT)
- Tungsten Carbide (DK27 LVHT, DK27 LVH)
Grinding capacity - fine* kg/h (approx.):
- 230 (DK27 LV)
- 260 (DK27 LVH)
- 280 (DG27 LVS)
Grinding capacity - medium* kg/h (approx.):
- 250 (DK27 LV)
- 280 (DK27 LVH)
- 300 (DK27 LVS)
Grinding capacity - turkish* kg/h (approx.):
- 170 (DK27 LVT)
- 180 (DK27 LVST)
- 220 (DK27 LVHT)
Bean hopper capacity: approx. 30 kg
Max. nominal power: 5500 W
Dimensions (w x h x d):
- 79 x 160 x 123 cm (incl. base)
- 69 x 70 x 79 cm l 200 l (container)
Dimensions of packing (w x h x d): Depends on individual version and equipment
Net weight:
- 155 kg (incl. base) (DK27 LV, DK27 LVS, DK27 LVT, DK27 LVST)
- 158 kg (incl. base) (DK27 LVH, DK27 LVHT)
Gross weight: Depends on individual version and equipment
Standard colors:
- Textured, reddish grey
Special Equipment
- Burrs for grains or for other grinding goods, espresso or turkish
- Additional ventilation
- Electropneumatic gate for a controlled supply of material
- Customized color from RAL catalogue
Legend
- DK27 LV (Cast steel)
- DK27 LVS (Steel)
- DK27 LVH (Tungsten Carbide)
- DK27 LVT (Cast steel for turkish)
- DK27 LVST (Steel for turkish)
- DK27 LVHT (Tungsten Carbide for turkish)
*Depends on the grinding goods and the chosen degree of fineness. All measured values under laboratory conditions. Other electric specifications available on request. Subject to change without prior notice.
The Mahlkönig DK 27 is a robust, high-performance industrial grinder engineered for continuous, high-volume coffee grinding. It pairs professional-grade build quality with flexible burr options, producing consistent grinds for diverse applications—from Turkish coffee to fine espresso. Ideal for large-scale or automated operations, its size, power requirements, and price limit it to serious coffee production use cases.
If you're considering integration, confirm power compatibility, shipping logistics, and expected lead times (some units may still be available but are being phased out). Let me know if you'd like a direct vendor comparison or details on maintenance, spare parts, or newer alternatives!
- Outstanding even grinding quality
- Wear-resistant premium burrs
- Very powerful three-phase motors with surface cooling and high starting torque - suitable for continuous operation
- Service-free, constantly greased bearings
- Two additional fans to cool the motor
- Ground material container (capacity 200 l)
Voltage // frequencies // phases:
- 380-415 V // 50/60 Hz // 3~
- 208-220 V // 50/60 Hz // 3~
Idle speed: 980 rpm (50 Hz); 1160 rpm (60 Hz)
Burr diameter: 180 mm
Burr material:
- Fully hardened special steel (DK27 LVS, DK27 LVST)
- Fully hardened special cast steel (DK27 LV, DK27 LVT)
- Tungsten Carbide (DK27 LVHT, DK27 LVH)
Grinding capacity - fine* kg/h (approx.):
- 230 (DK27 LV)
- 260 (DK27 LVH)
- 280 (DG27 LVS)
Grinding capacity - medium* kg/h (approx.):
- 250 (DK27 LV)
- 280 (DK27 LVH)
- 300 (DK27 LVS)
Grinding capacity - turkish* kg/h (approx.):
- 170 (DK27 LVT)
- 180 (DK27 LVST)
- 220 (DK27 LVHT)
Bean hopper capacity: approx. 30 kg
Max. nominal power: 5500 W
Dimensions (w x h x d):
- 79 x 160 x 123 cm (incl. base)
- 69 x 70 x 79 cm l 200 l (container)
Dimensions of packing (w x h x d): Depends on individual version and equipment
Net weight:
- 155 kg (incl. base) (DK27 LV, DK27 LVS, DK27 LVT, DK27 LVST)
- 158 kg (incl. base) (DK27 LVH, DK27 LVHT)
Gross weight: Depends on individual version and equipment
Standard colors:
- Textured, reddish grey
Special Equipment
- Burrs for grains or for other grinding goods, espresso or turkish
- Additional ventilation
- Electropneumatic gate for a controlled supply of material
- Customized color from RAL catalogue
Legend
- DK27 LV (Cast steel)
- DK27 LVS (Steel)
- DK27 LVH (Tungsten Carbide)
- DK27 LVT (Cast steel for turkish)
- DK27 LVST (Steel for turkish)
- DK27 LVHT (Tungsten Carbide for turkish)
*Depends on the grinding goods and the chosen degree of fineness. All measured values under laboratory conditions. Other electric specifications available on request. Subject to change without prior notice.
Product Features
Durable, High-Performance Burr Options
Choose from premium wear-resistant materials—Fulli Hardened Special Steel or Tungsten Carbide—engineered for precise grinding of coffee, Turkish blends, spices, and pepper. Built to last, designed to perform.
High-Performance Three-Phase Motor
Engineered for endurance, this powerful motor features dual cooling fans, strong starting torque, built-in ventilation for both motor and casing, and overload protection—ensuring reliable performance in continuous operation.
WARRANTY: All new Mahlkonig grinders include 1-year parts and labor warranty.
PLEASE NOTE: Each grinder is factory tested and calibrated with actual coffee beans prior to being sold. Therefore, it is normal to have some coffee residue/dust/particles leftover from the calibration process in a "factory new" grinding machine.
